Typ77-L 1-1/4"

Concrete - Universal

Typ77-L 1-1/4"

Main points

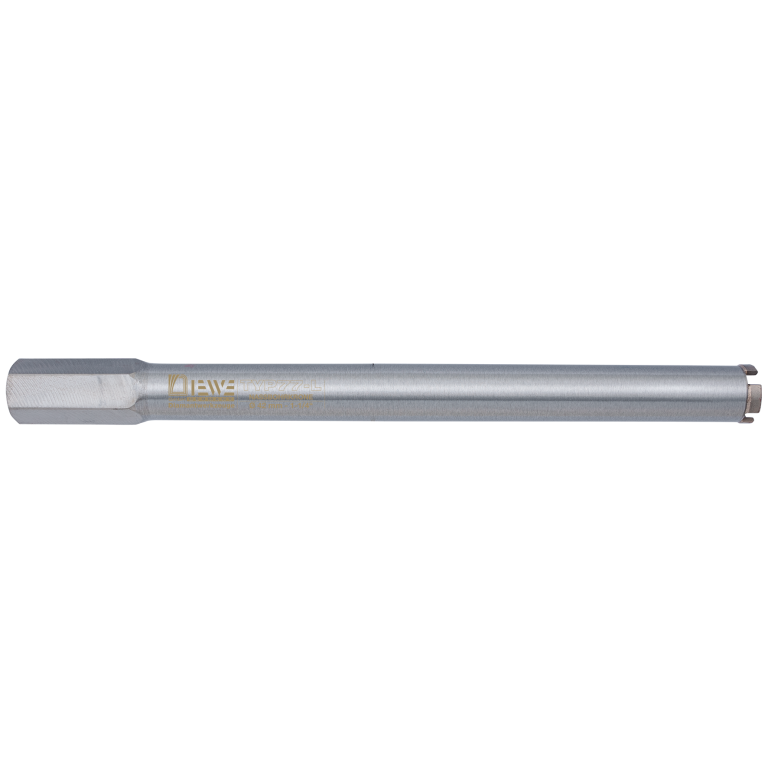

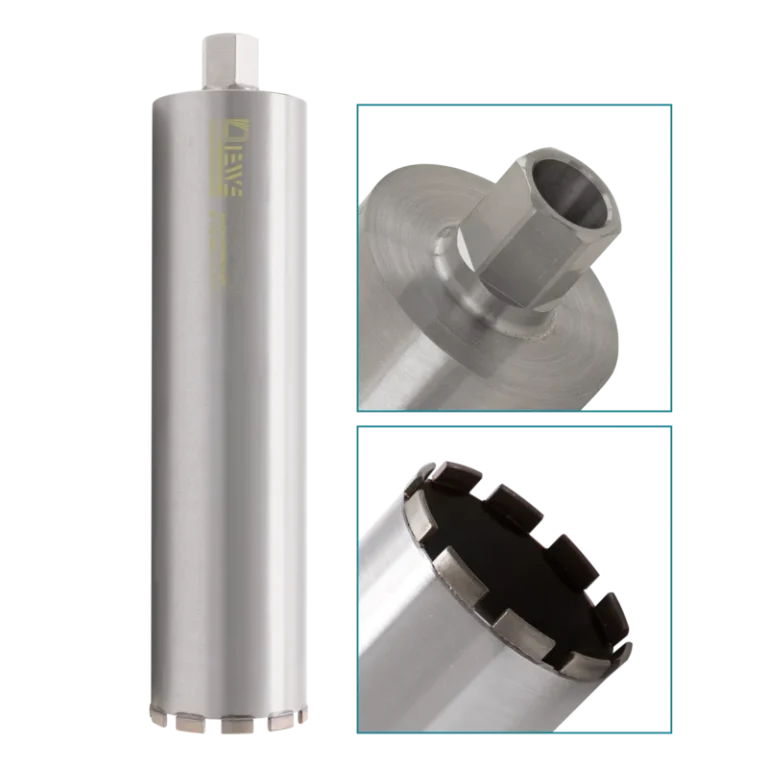

The Type 77-L core drill bit with a usable length of 420 mm is specifically designed for precise drilling in concrete. Its robust, laser-welded segments ensure high cutting performance and long service life.

Recommendation

Kernbohrmaschine / Nassschnitt

Ø 38 - 276 mm

wet dry cut

Product information

Diameter	Article number	Effective length	Segment height
142 mm	75742	420 mm	10 mm
82 mm	75682	420 mm	10 mm
122 mm	75722	420 mm	10 mm
152 mm	75752	420 mm	10 mm
42 mm	75642	420 mm	10 mm
200 mm	75800	420 mm	10 mm
72 mm	75672	420 mm	10 mm
92 mm	75692	420 mm	10 mm
225 mm	75825	420 mm	10 mm
162 mm	75762	420 mm	10 mm
102 mm	75702	420 mm	10 mm
38 mm	75638	420 mm	10 mm
62 mm	75662	420 mm	10 mm
250 mm	75850	420 mm	10 mm
276 mm	75876	450 mm	11 mm
112 mm	75712	420 mm	10 mm
138 mm	75738	420 mm	10 mm
132 mm	75732	420 mm	10 mm
186 mm	75786	420 mm	10 mm
172 mm	75772	420 mm	10 mm
56 mm	75656	420 mm	10 mm
52 mm	75652	420 mm	10 mm
182 mm	75782	420 mm	10 mm

Application areas

Beton

Universal-1
